 Passive Direct Boxes

Here are a few different variations of passive direct boxes.  This should give you some good ideas of the features you might want on your own passive direct box.

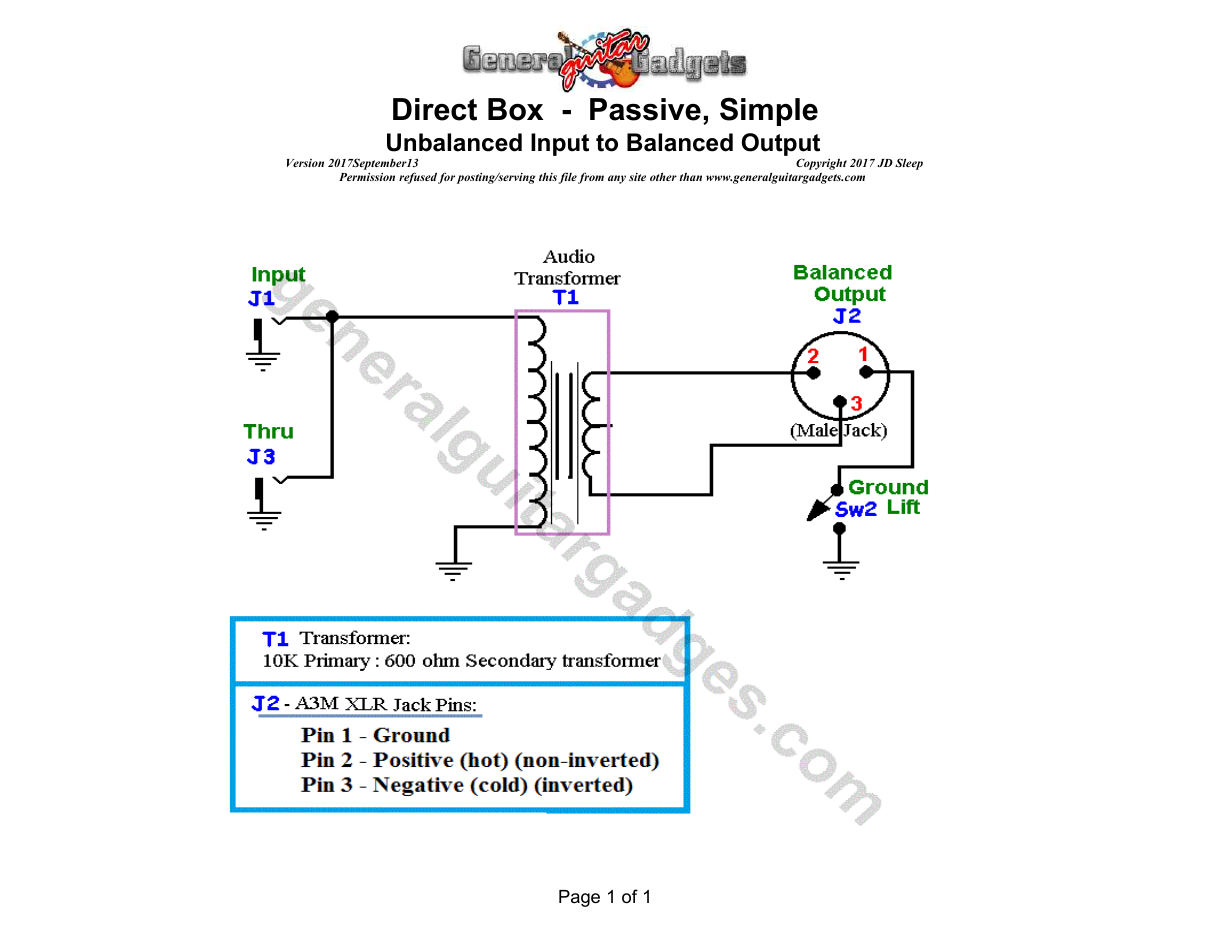

  • Simple Passive Direct Box Schematic

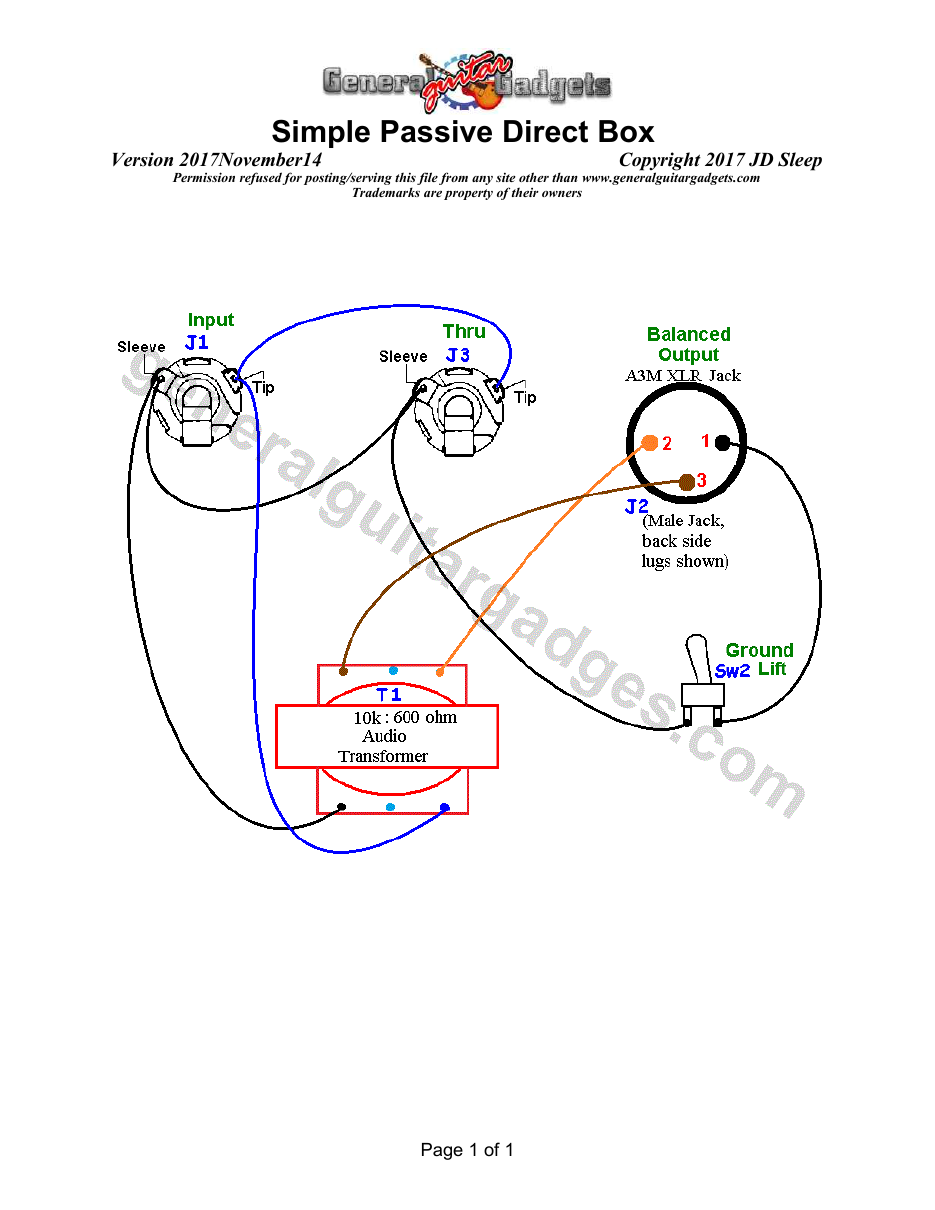

  • Simple Passive Direct Box Layout

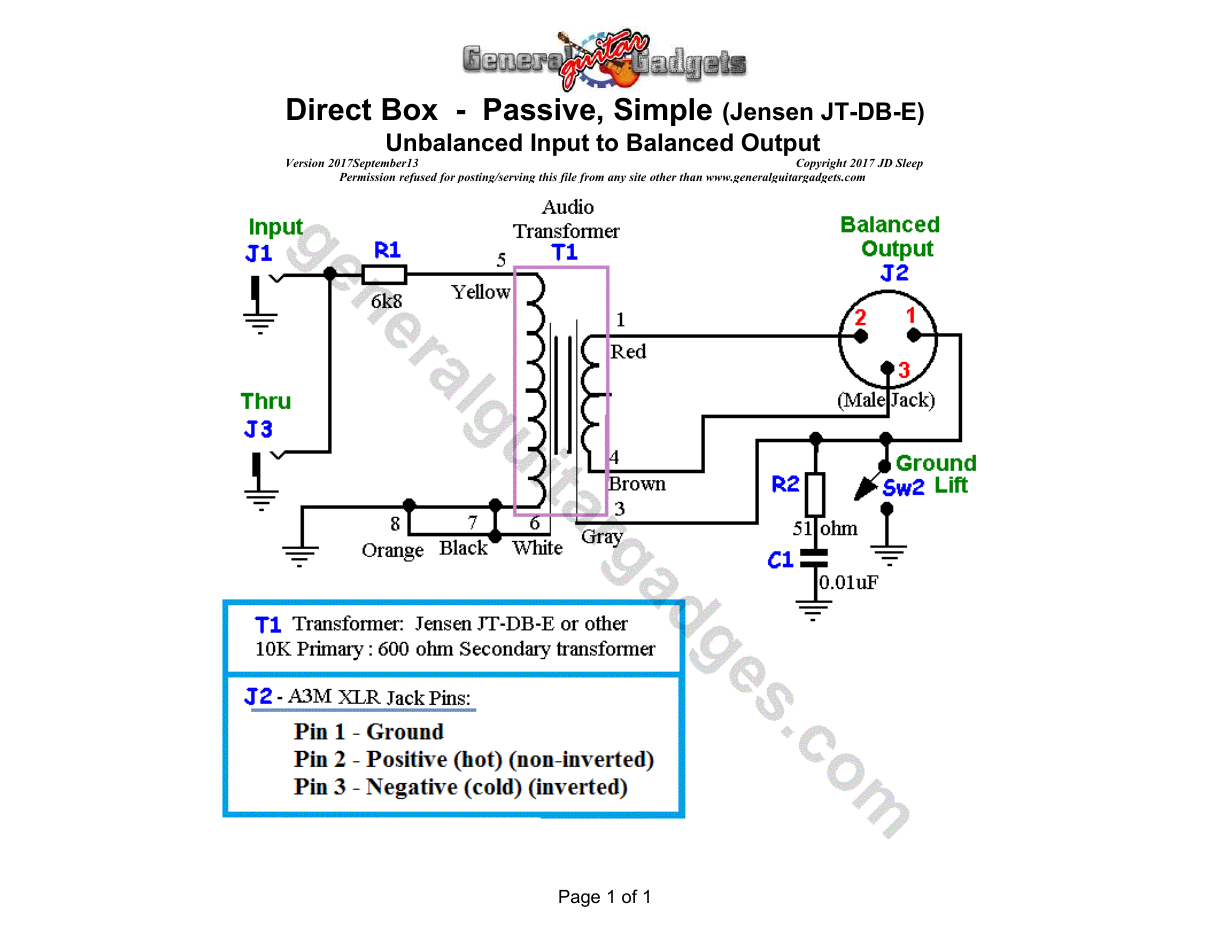

  • Passive Direct Box with Jensen JT-DB-E transformer designations Schematic

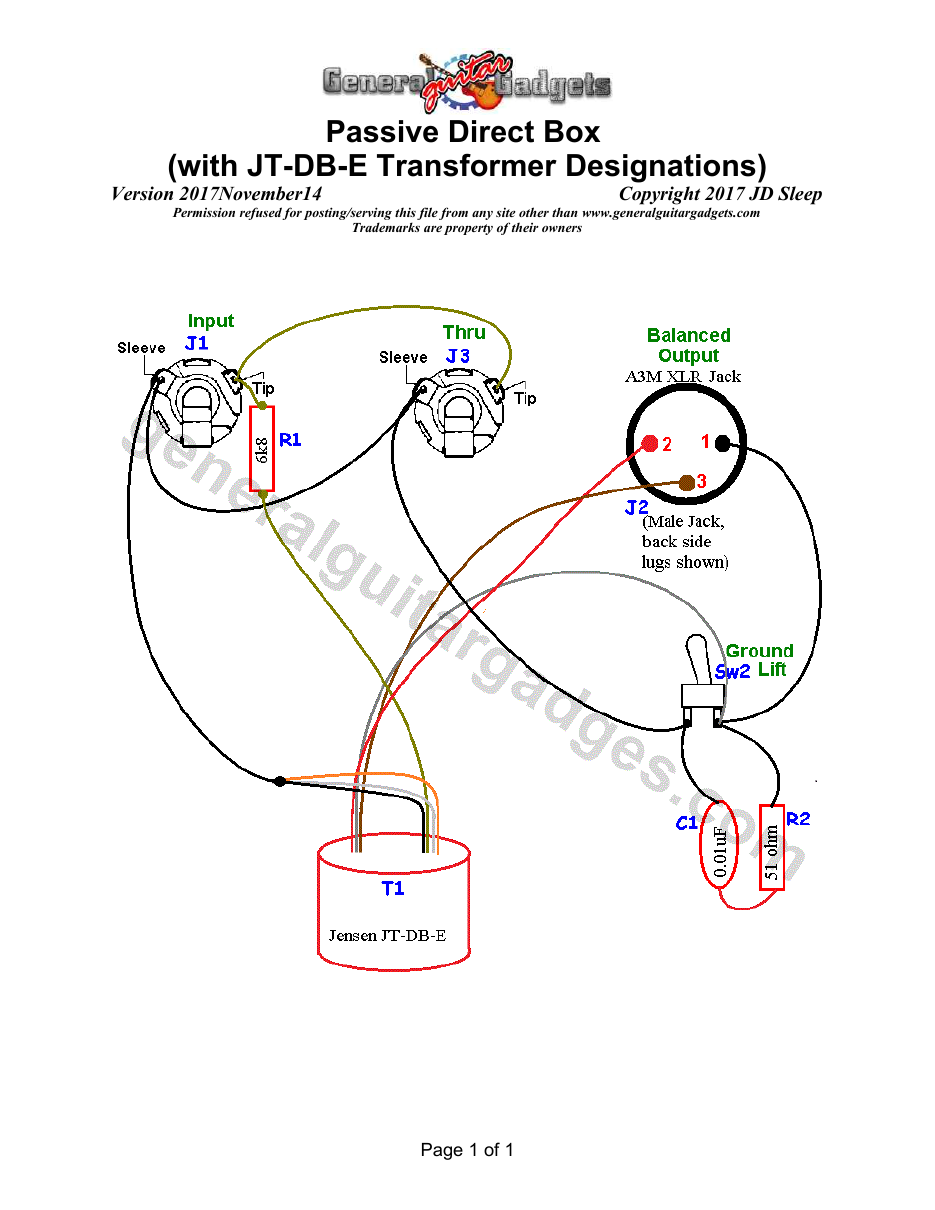

  • Passive Direct Box with Jensen JT-DB-E transformer designations Layout

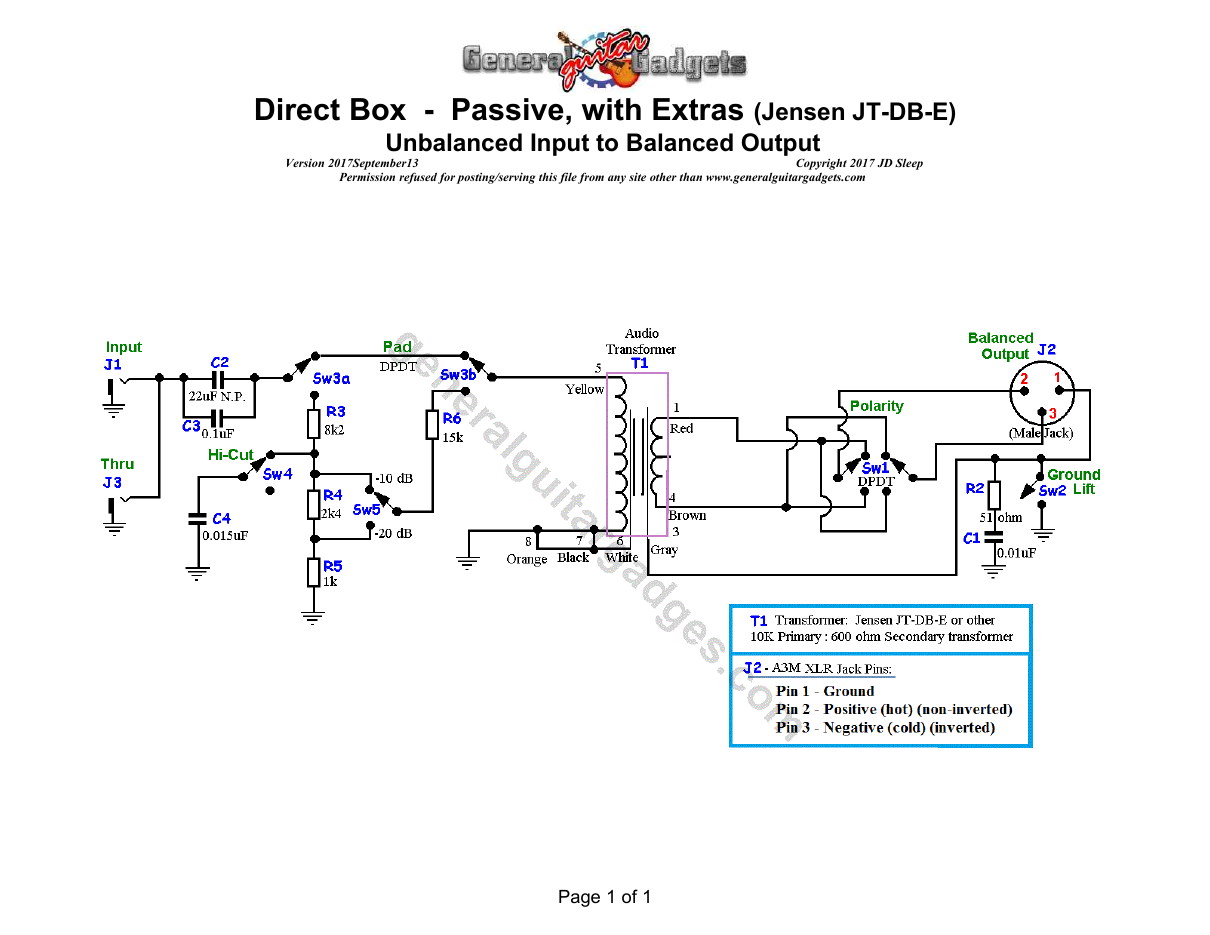

  • Passive JT-DB-E Direct Box with added features Schematic

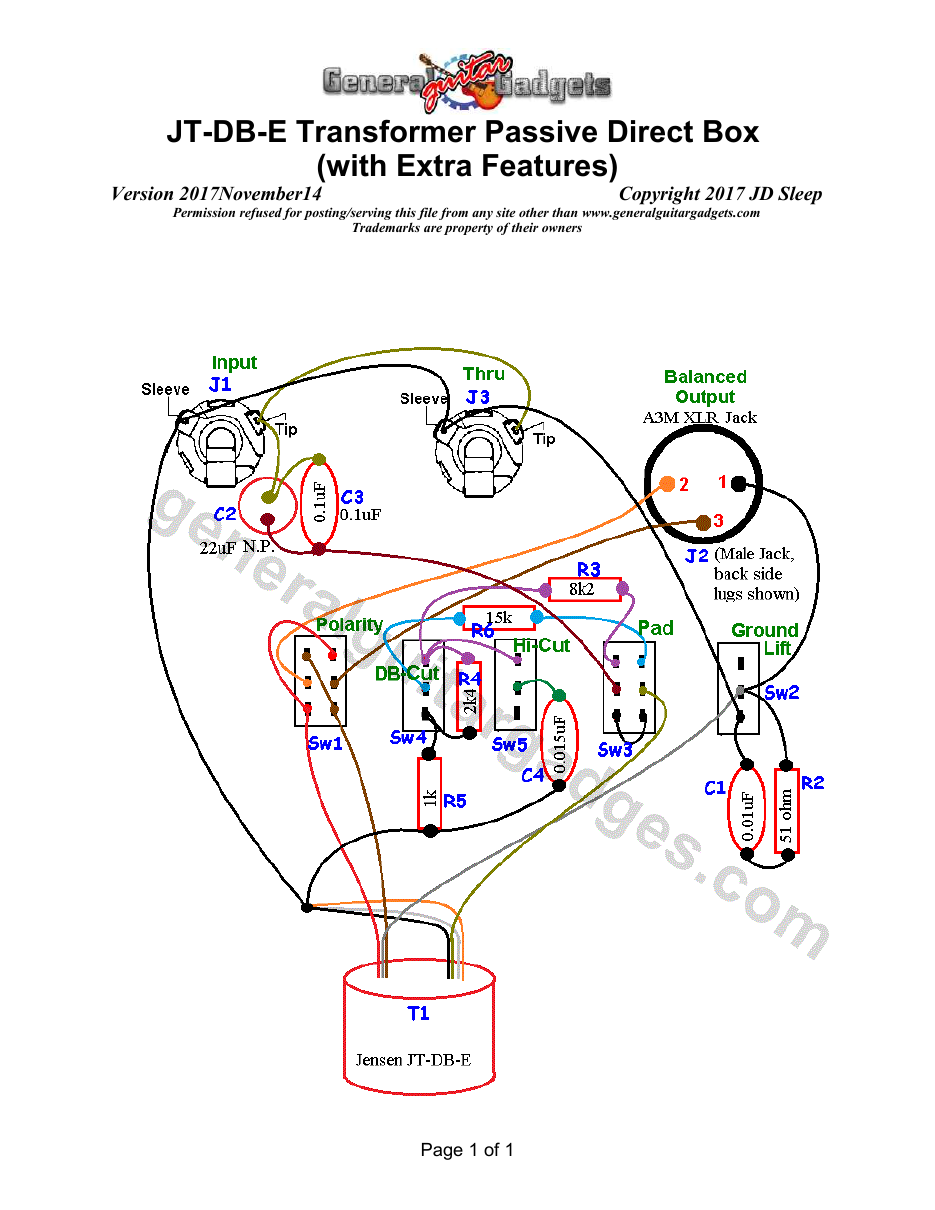

  • Passive JT-DB-E Direct Box with added features Layout
  • Jensen JT-DB-E Transformer Specifications Datasheet
  • Jensen JT-DB-EPC Transformer Specifications Datasheet
  • Jensen JT-DB-E Application Notes

Jensen JT-DB-E and JT-DB-EPC Direct Box Transformers

Buy a Jensen Transformer!
.
