MXR™ Distortion Plus™
The Distortion Plus pedal is very popular and good sounding distortion. It is strikingly similar to the DOD Overdrive 250 distortion pedal. This project uses the same Ready-For-Transfer Printed Circuit Board Layout file that is used in the DOD 250 Overdrive Project on this site.
- General Build Instructions

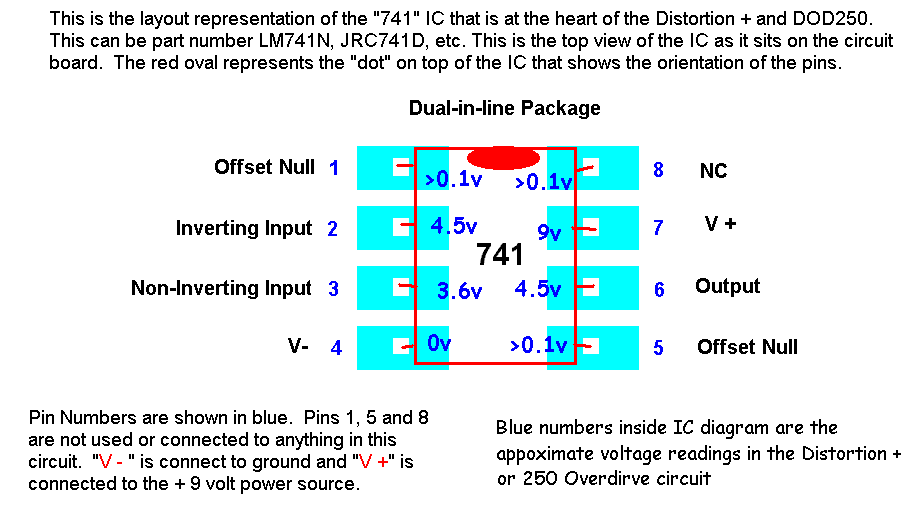

- Distortion Plus Replica Build Instructions
- Distortion Plus Bill of Materials Text

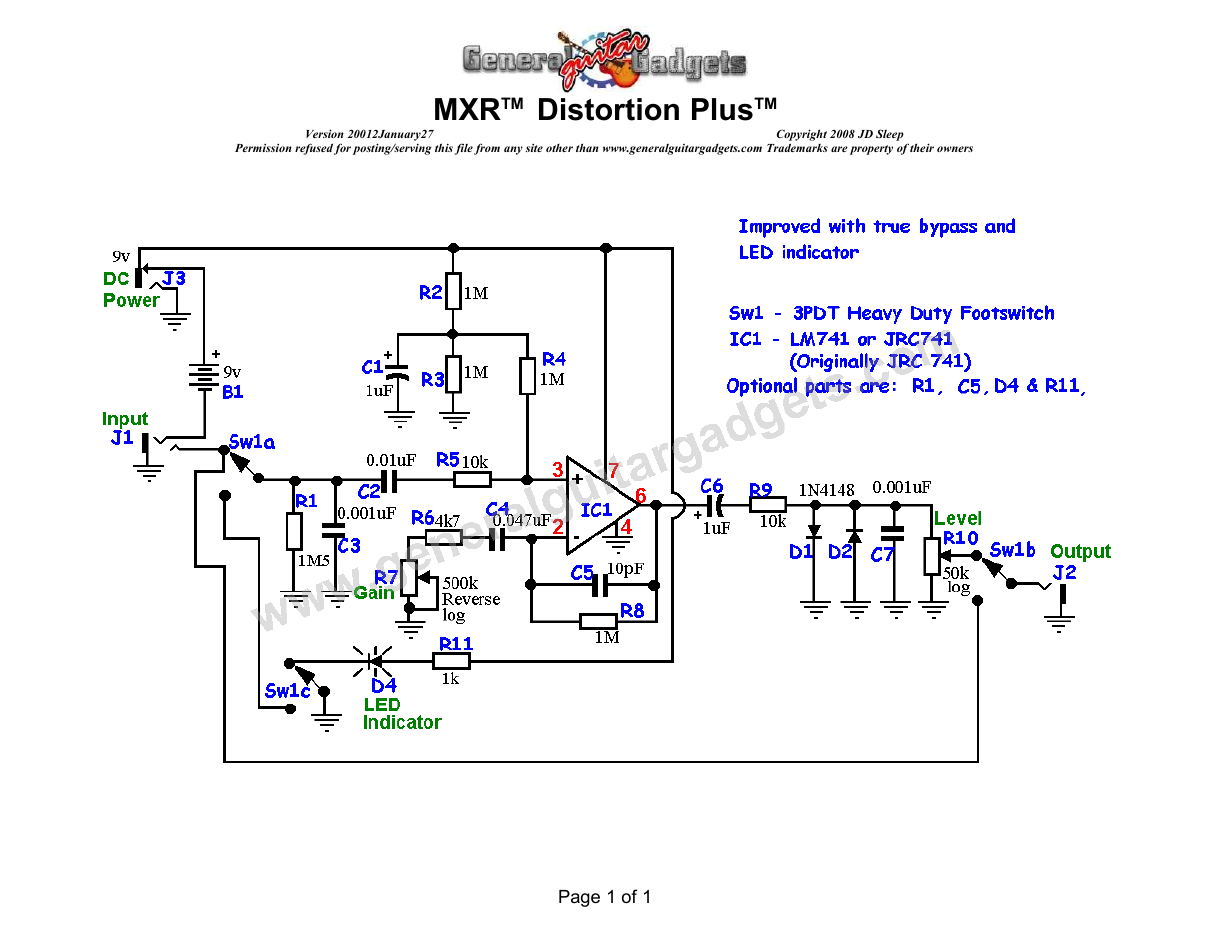

- Distortion Plus Schematic

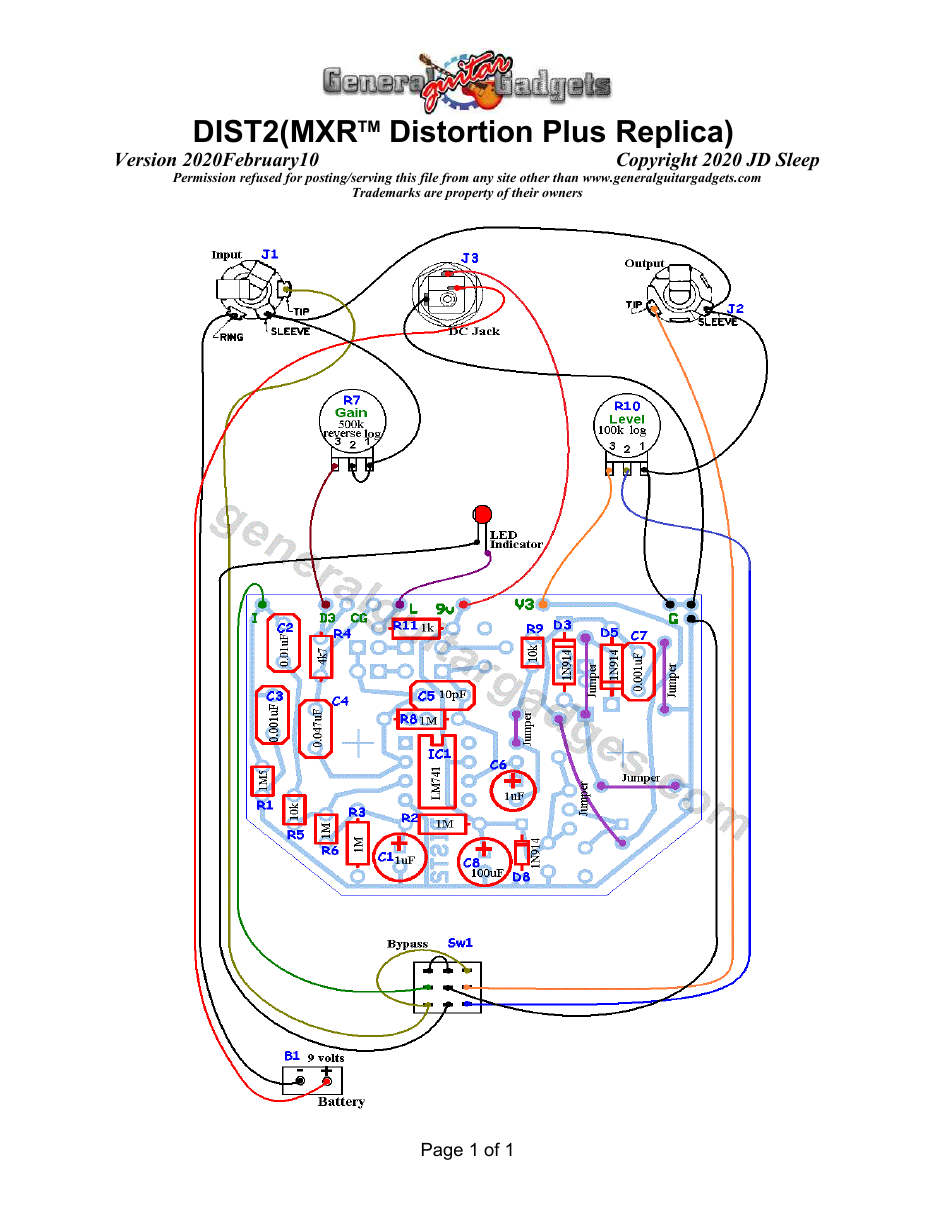

- >Distortion Plus Parts Layout and Wiring Diagram (DIST2 PCB)

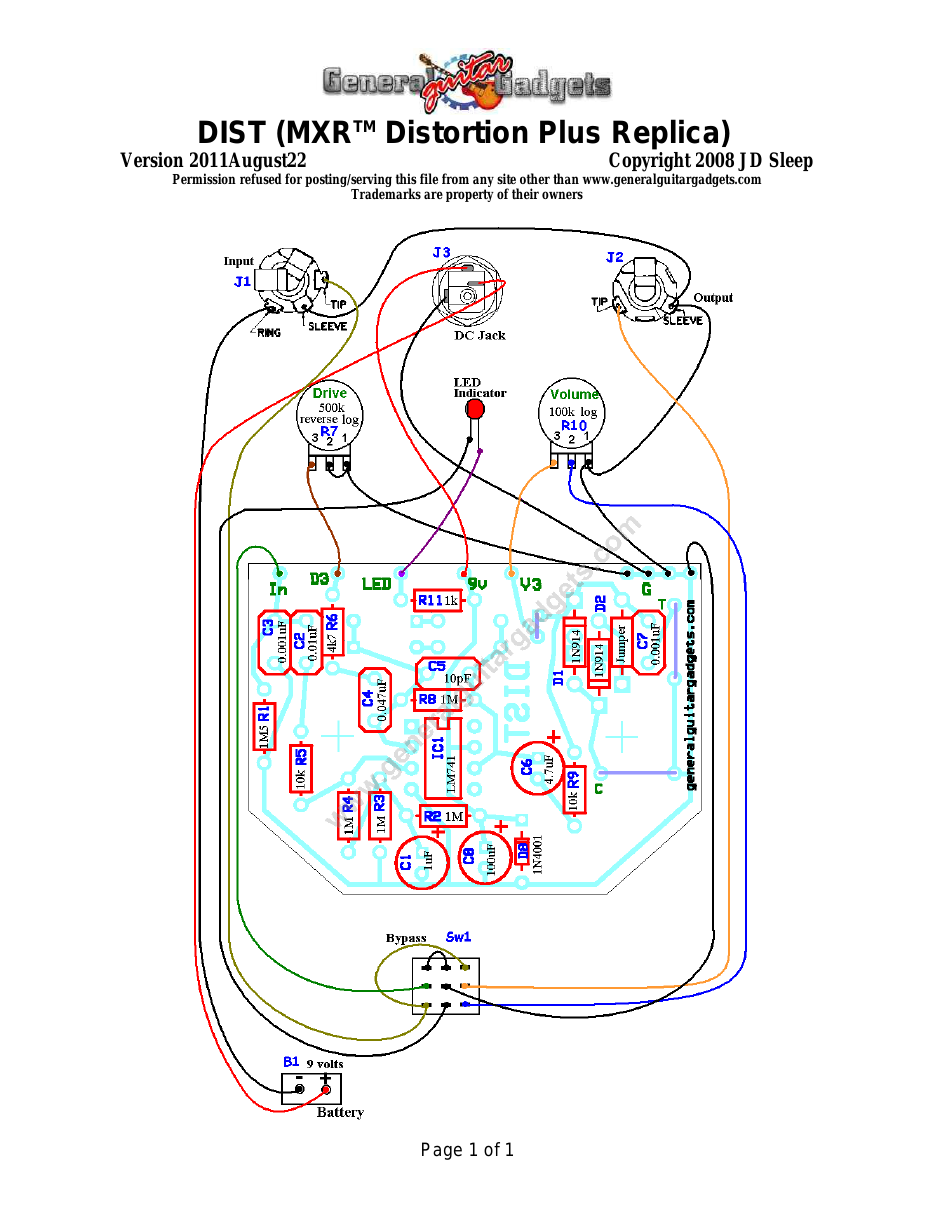

- Distortion Plus Parts Layout and Wiring Diagram (older DIST PCB)
- Distortion Plus Ready-For-Transfer Printed Circuit Board Layout For use only if you are a complete DIY person who wants to etch and drill your own PCB. Otherwise, we recommend you ignore this PCB mask and buy the Ready-to-Solder Printed Circuit Board or Complete Kit from the links below.
- Project Revisions History
