Ibanez™ CP10™ Compressor™ Relica
This is the awesome Ibanez™ CP10™ Compressor replica project. This project uses the same PCB as the Ibanez™ BP10™ Compressor, they are nearly the same circuit, with only two capacitor values difference. A very nice (and under-rated) compressor. The Ibanez™ "10" series has always been plagued by a bad reputation because the plastic jacks and pots with plastic shafts that make some repairs difficult or impossible. Of course those problems are not an issue with this replica! Build yourself a reliable and great sounding compressor.
Project files
Everything you need to build it

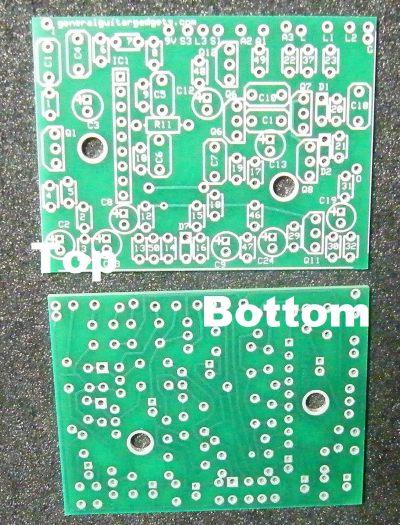

Ibanez™ CP10™ Compressor Ready-For-Transfer Printed Circuit Board Layout For use only if you are a complete DIY person who wants to etch and drill your own PCB. Otherwise, we recommend you ignore this PCB mask and buy the Ready to Solder Printed Circuit Board.
Schematic
Schematic


Parts layout
Parts Layout / Wiring Diagram

What you will need
Bill of Materials
Version 2015July02 · Copyright 2015 JD Sleep · Permission refused for posting/serving this file from any site other than www.generalguitargadgets.com · Trademarks are property of their owners
Resistors
| Resistor ID | Value | 3-band Marking | 4-band Marking |
|---|---|---|---|
| R1 | 10k | brown-black-orange | brown-black-black-red |
| R2 | 9k1 (9.1k) | white-brown-red | white-brown-black-brown |
| R3 | 22k | red-red-orange | red-red-black-red |
| R4 | 510k (511k Metal Film) | green-brown-yellow | green-brown-brown-orange |
| R5 | 10k | brown-black-orange | brown-black-black-red |
| R6 | 10k | brown-black-orange | brown-black-black-red |
| R7 | 4k7 (4.7k) | yellow-violet-red | yellow-violet-black-brown |
| R8 | 10k | brown-black-orange | brown-black-black-red |
| R9 | 10k | brown-black-orange | brown-black-black-red |
| R10 | 150k | brown-green-yellow | brown-green-black-orange |
| R11 | 30k | orange-black-orange | orange-black-black-red |
| R12 | 10k | brown-black-orange | brown-black-black-red |
| R13 | 10k | brown-black-orange | brown-black-black-red |
| R14 | 47k | yellow-violet-orange | yellow-violet-black-red |
| R15 | 56k | green-blue-orange | green-blue-black-red |
| R16 | 27k | red-violet-orange | red-violet-black-red |
| R17 | 100k | brown-black-yellow | brown-black-black-orange |
| R18 | 10k | brown-black-orange | brown-black-black-red |
| R19 | 10k | brown-black-orange | brown-black-black-red |
| R20 | 1M | brown-black-green | brown-black-black-yellow |
| R21 | 1M | brown-black-green | brown-black-black-yellow |
| R22 | 24k | red-yellow-orange | red-yellow-black-red |
| R23 | 1k | brown-black-red | brown-black-black-brown |
| R29 | 510k (511k Metal Film) | green-brown-yellow | green-brown-brown-orange |
| R30 | 10k | brown-black-orange | brown-black-black-red |
| R31 | 470 ohm | yellow-violet-brown | yellow-violet-black-black |
| R32 | 100k | brown-black-yellow | brown-black-black-orange |
| R37 | 1k | brown-black-red | brown-black-black-brown |
| R46 | 10k | brown-black-orange | brown-black-black-red |
| R47 | 10k | brown-black-orange | brown-black-black-red |
| R50 | 100k | brown-black-yellow | brown-black-black-orange |
Capacitors
| Capacitor ID | Value | Type | Possible Marking |
|---|---|---|---|
| C1 | 0.047µF | Film | 473 |
| C2 | 10µF | Aluminum Electrolytic | 10µF |
| C3 | 2.2µF | Aluminum Electrolytic | 2.2µF |
| C4 | 0.01µF | Film | 103 |
| C5 | 0.01µF | Film | 103 |
| C6 | 0.001µF | Film | 102 |
| C7 | 0.22µF | Film | 224 |
| C8 | 47µF | Aluminum Electrolytic | 47µF |
| C9 | 10µF | Aluminum Electrolytic | 10µF |
| C10 | 0.01µF | Film | 103 |
| C11 | 0.01µF | Film | 103 |
| C12 | 1µF | Aluminum Electrolytic | 1µF |
| C13 | 10µF | Aluminum Electrolytic | 10µF |
| C18 | 0.1µF | Film | 104 |
| C19 | 10µF | Aluminum Electrolytic | 10µF |
| C23 | 100µF | Aluminum Electrolytic | 100µF |
| C24 | 47µF | Aluminum Electrolytic | 47µF |
Potentiometers
| Part ID | Value | Type |
|---|---|---|
| VR2 - Sustain | 500k | Reverse Log Potentiometer |
| VR3 - Attack | 100k | Linear Taper Potentiometer |
| VR4 - Level | 100k | Linear Taper Potentiometer |
Other
| Part ID | Part Name |
|---|---|
| IC1 | BA6110 Op amp |
| Q1 | 2N5089 BJT Transistor |
| Q6 | 2N5089 BJT Transistor |
| Q7 | 2N5089 BJT Transistor |
| Q8 | 2N5089 BJT Transistor |
| Q11 | 2N5089 BJT Transistor |
| Q12 | 2N5089 BJT Transistor |
| D1 | 1N914 |
| D2 | 1N914 |
| D7 | 1N914 |
| D8 | Status Indicator LED and holder |
| J1 | Stereo quarter-inch jack |
| J2 | Mono quarter-inch jack |
| J3 | DC Jack |
| B1 | 9 volt battery (not included in the Kit) |
| Sw1 | Heavy Duty 3PDT foot switch 9v battery snap, Printed Circuit Board, 24 gauge stranded wire, Enclosure, Knobs |
How to build it
Instructions
Version 2015August19 · Copyright 2015 JD Sleep · Permission refused for posting/serving this file from any site other than www.generalguitargadgets.com · Trademarks are property of their owners
The IbanezTM CP10TM Compressor is a great little 3-knob compressor! A little more complex to build than some of the other compressors, but well worth the effort. Use the project documents provided, starting with the General Build Instructions. Notice that nearly all the resistors are standing on end. Make sure that the resistors are positioned standing up as straight as possible to avoid any short circuits between components.
Here is a chart of voltages taken at the transistor pins. This information can be used to help you find and fix problems if your GRO doesn't work when you test it.
